BracketAarmMountFrontInnerUpperStress1.analysis

Published April 14, 2012 at 1448 × 989 in Redesigning Suspension Components
Upper Front

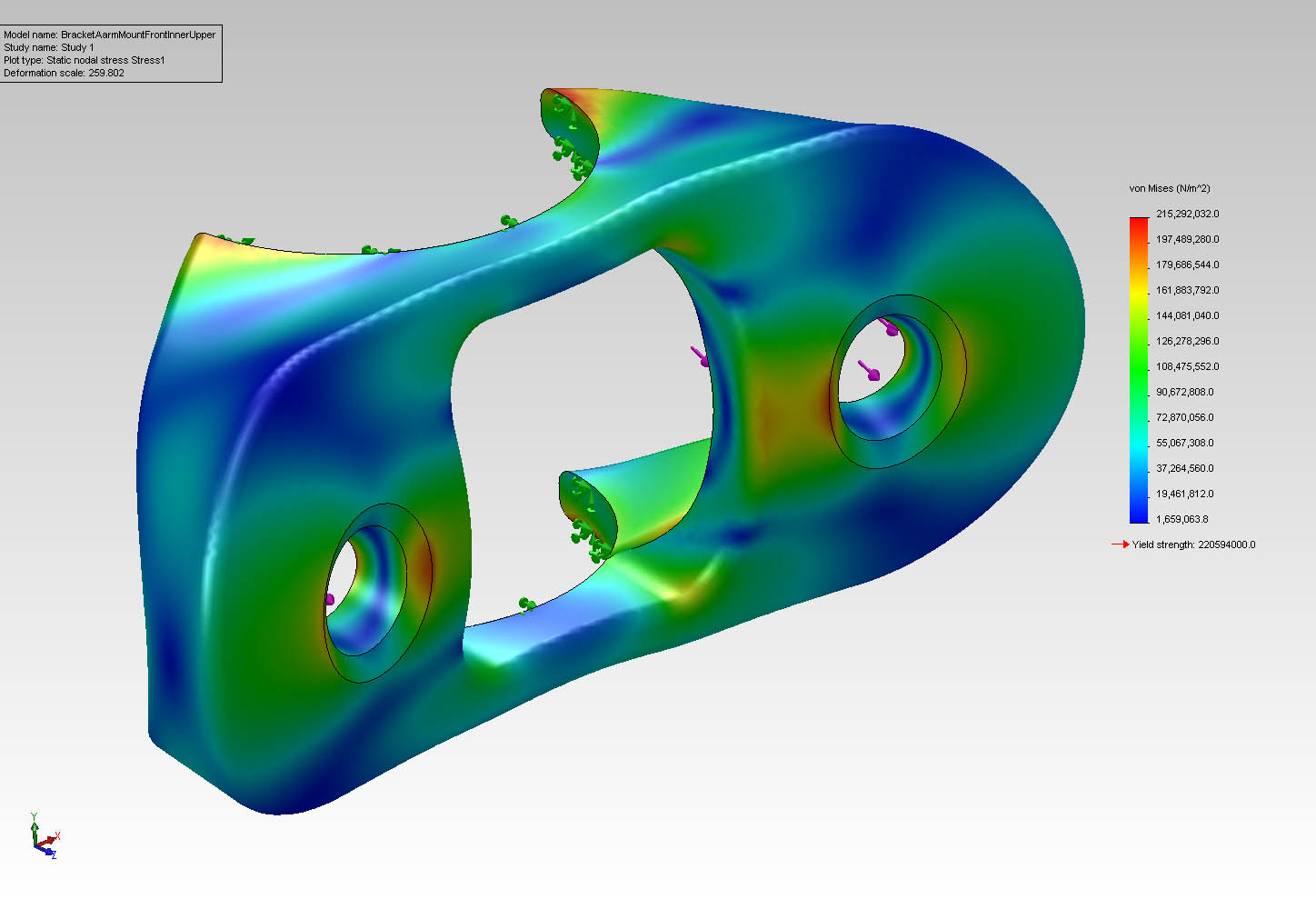

FEA plot for front upper suspension attachment bracket that will be welded to the chassis.

FEA finite element analysis result plot for upper front suspension attachment bracket
