P1090646

Published March 8, 2012 at 1280 × 720 in Building the Frame: Roll Hoop to Tail
H-J Bottom

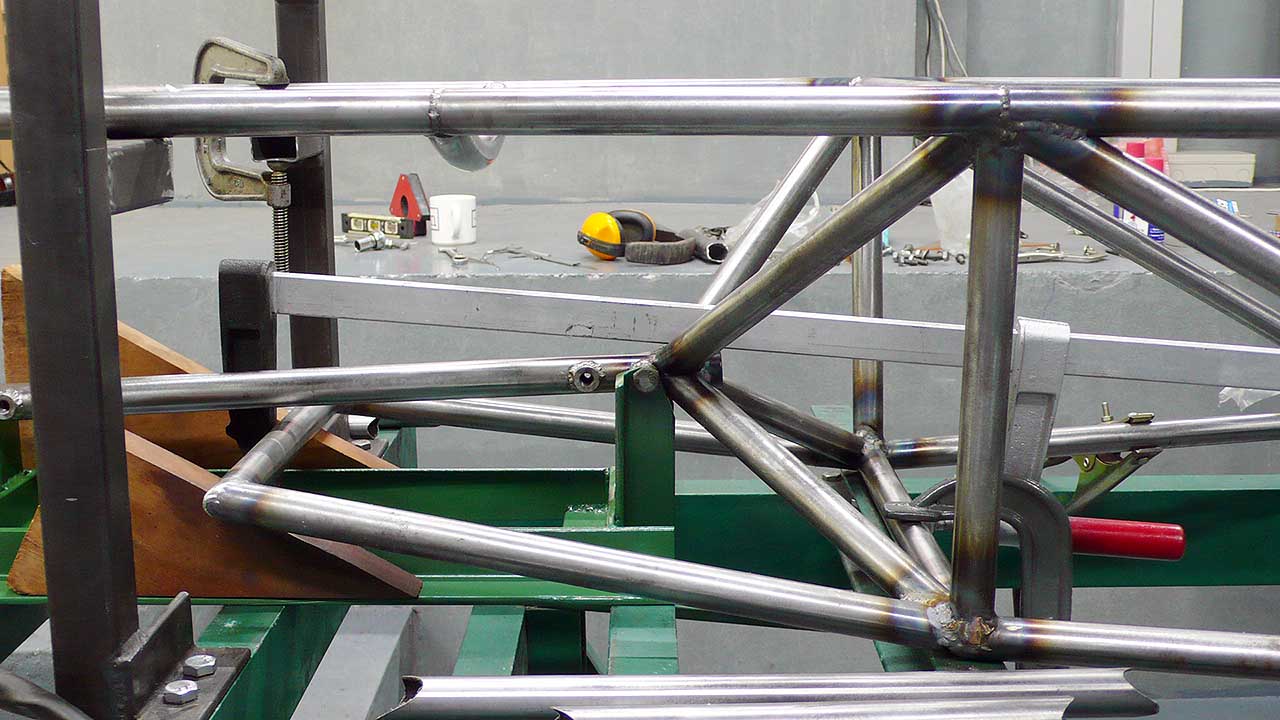

H-J bottom perimeter tubes in place. These 3 tubes were welded flat on the table then lifted into place. Here you see the bottom of the car start to curve upward to clear the diffuser.

race car tube frame fabrication rear diffuser clearance
