Finished the Swing Set

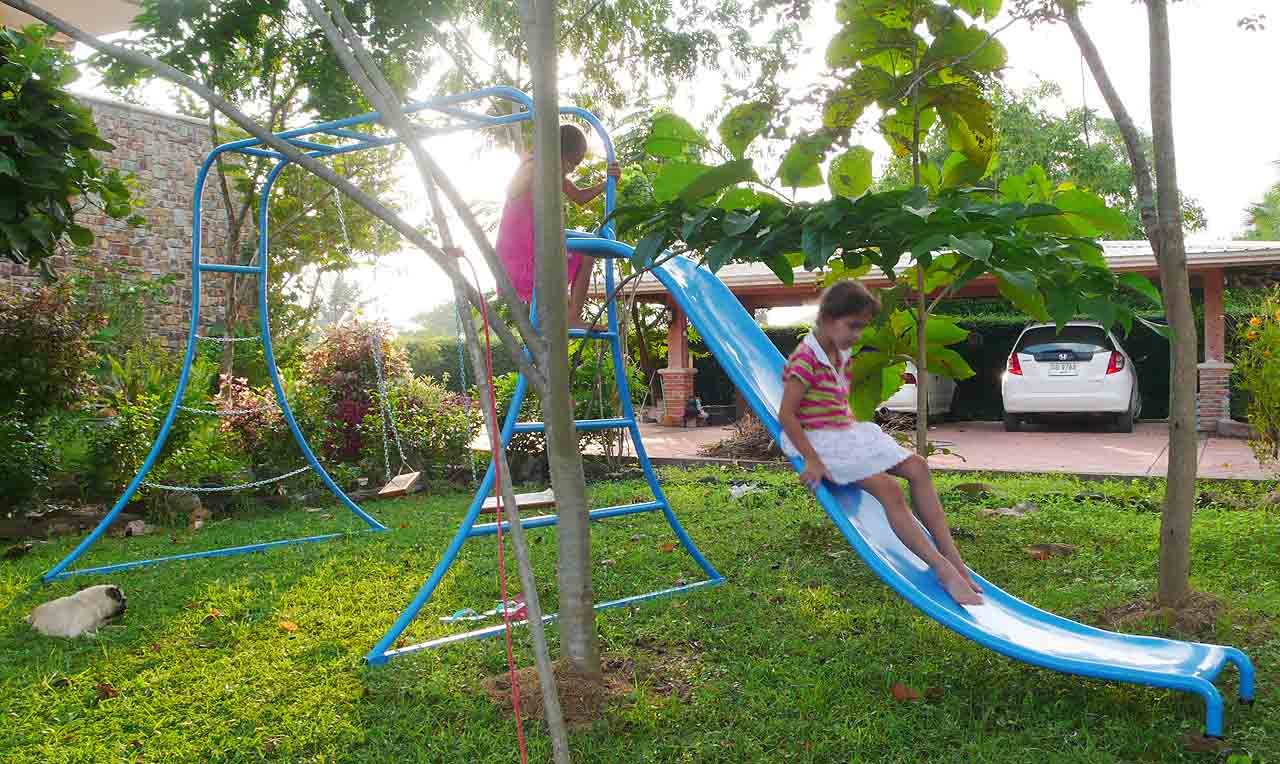

Finished Swing Set

Slide works and everything!

Chain ladder

Chain ladder up one side of swing set, just for variety

Chain attachment

Chain ladder is attached by welding on a piece of bent 1/4" rebar, flattened on the ends by pounding against an anvil.

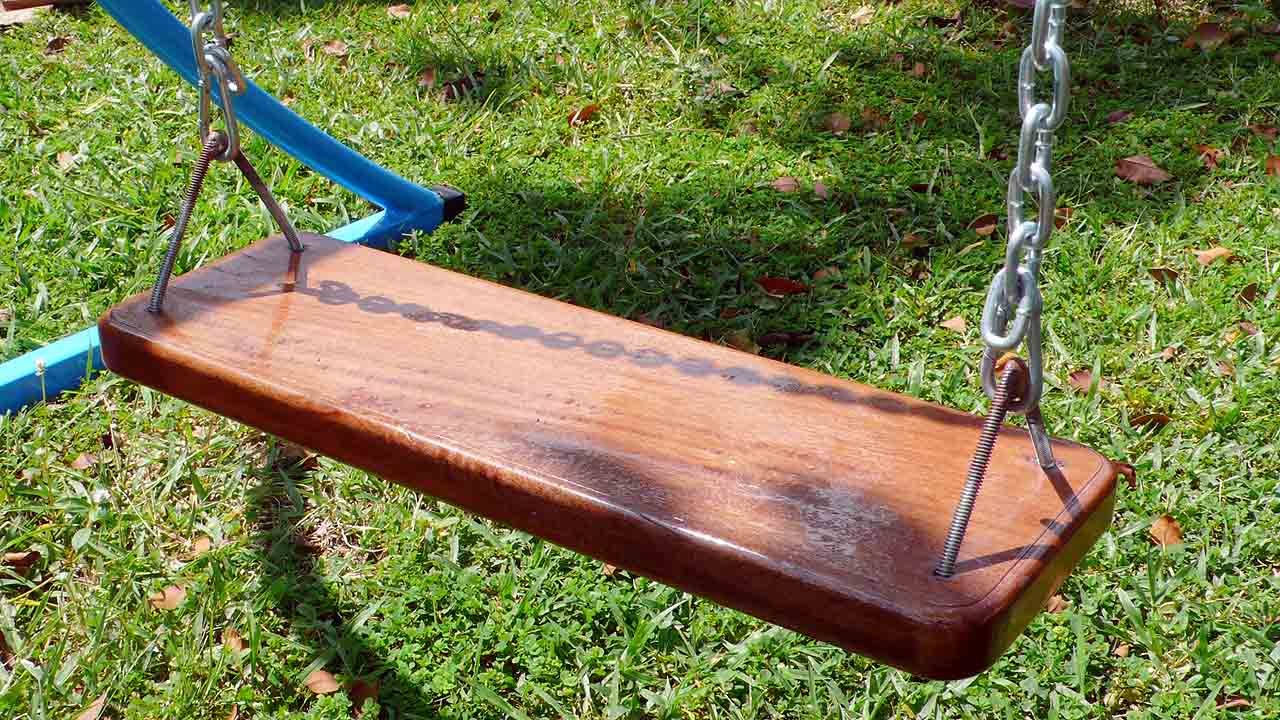

Swing seat

Swing seats were made from 1 1/2" hardwood left over from building the house stairs, a 1" radius cut on the outside corners, and rounded off top and bottom with a 1/8" roundoff router bit

Seat Attachment

Chains are attached to seats with 1/4" threaded rod, bent to shape and welded at the top as it was too brittle to make the sharp bend. Carabiners were purchased at a local hardware store.

Seat Bottom

Nuts were welded in place to hold wooden seats on the stirrups. Can't afford a failure in use here.

Swing Chain Attachment

Swing chains were attached same as the chain ladder

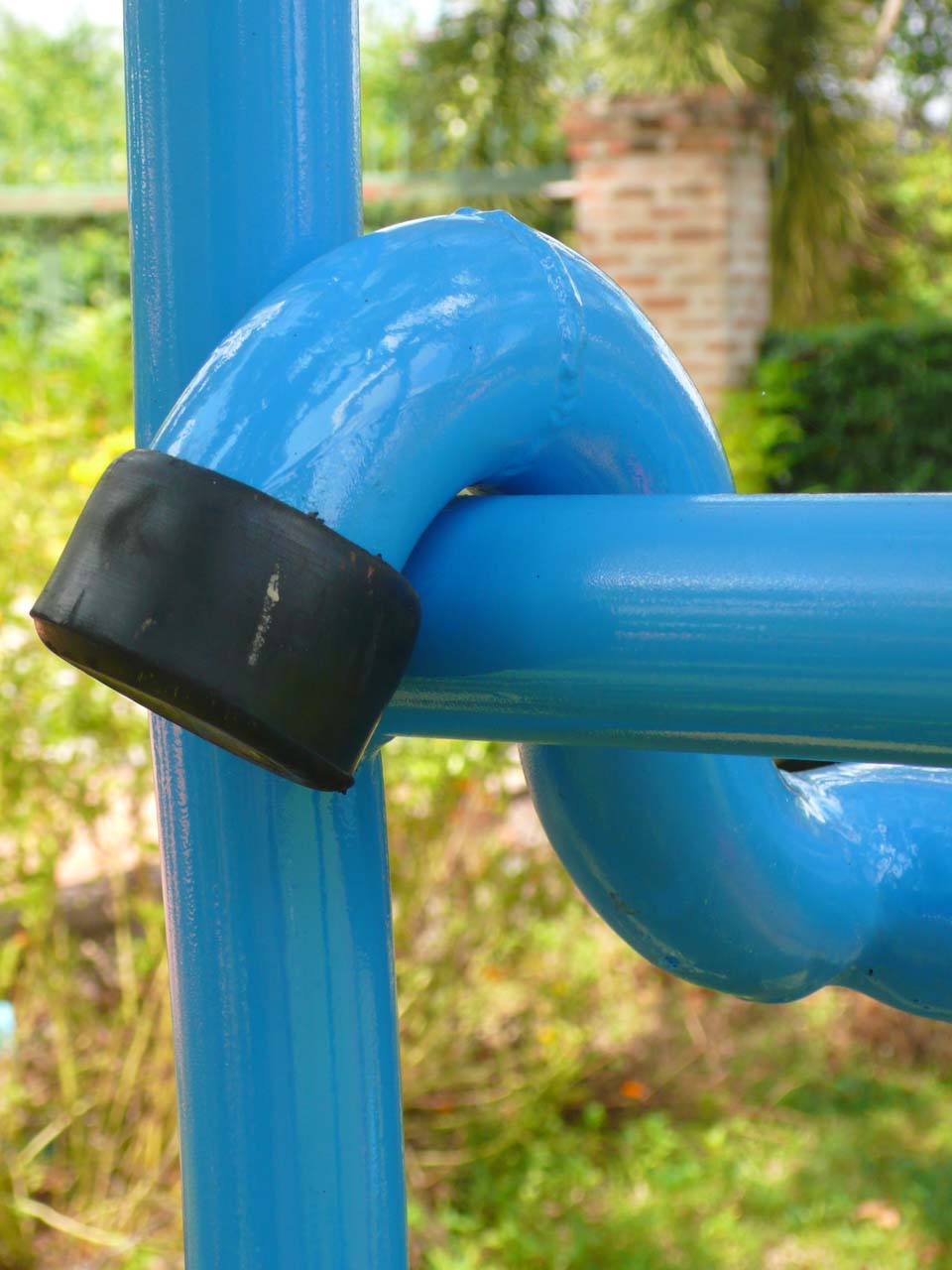

Slide Attachment

Slide slips over a crossbar of the swing frame. Ends are capped with rubber feet available off the shelf.

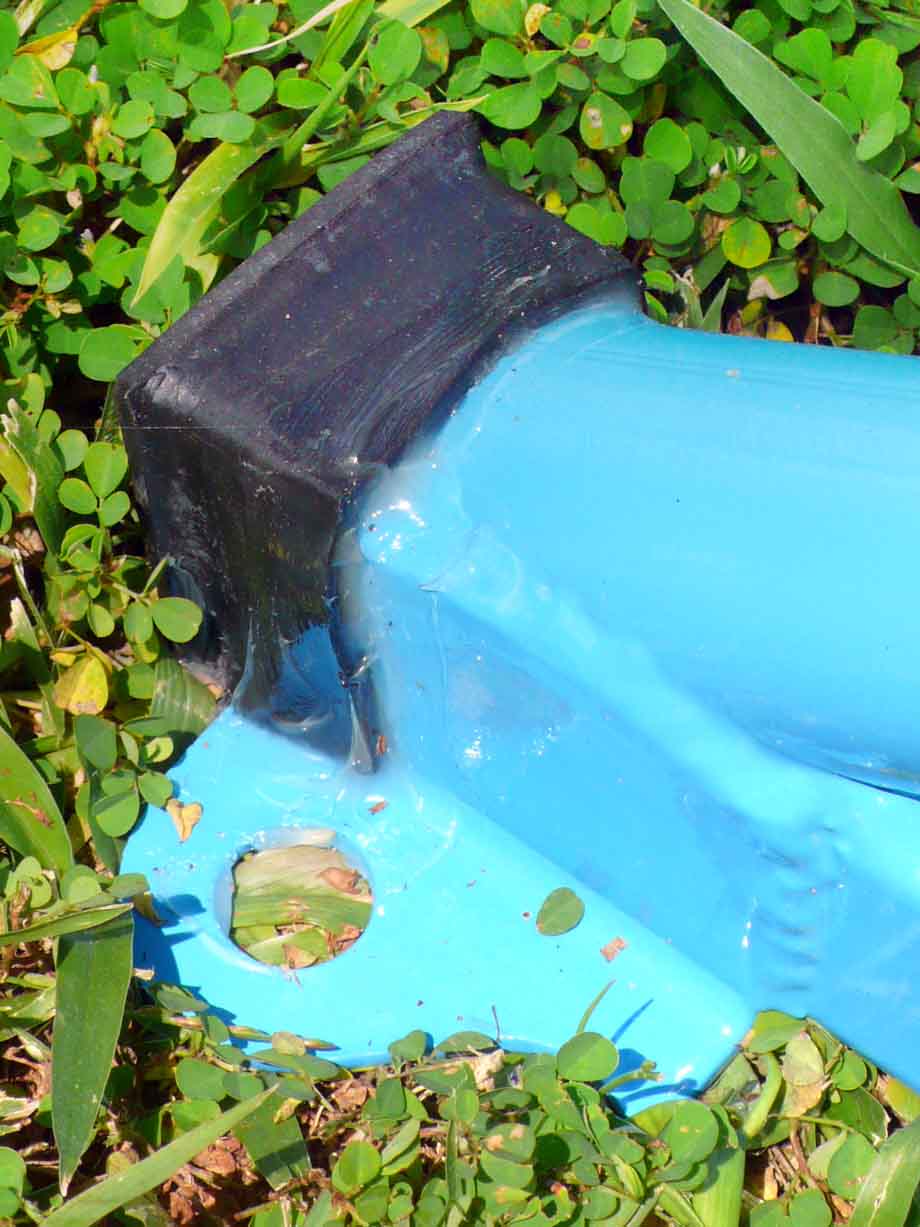

Bottom Corner

Bottom crossmembers used square instead of round tubing to spread the load better. Ends were capped with rubber feet available off the shelf. Also welded on tiedown lugs from the local hardware store.

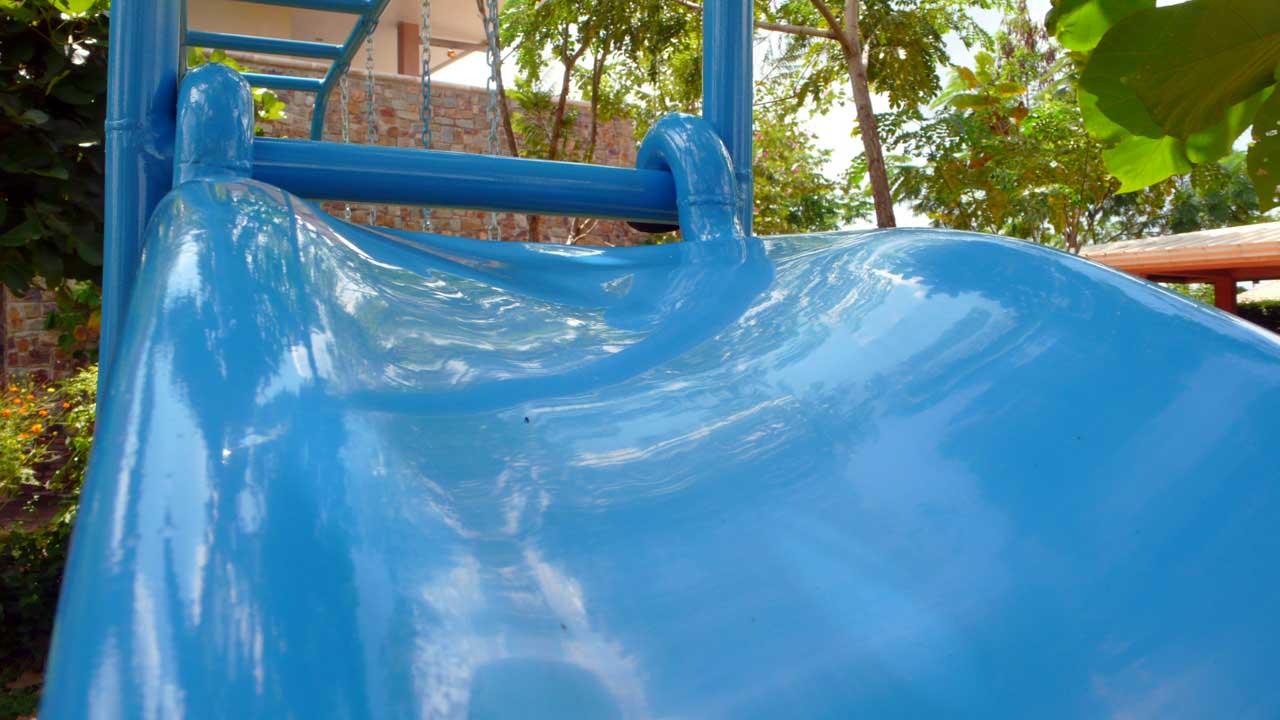

Slide Surface

To make it slippery I sanded the slide with 1000, 1200, and 1500 grit wet-or-dry sandpaper, then polished with two coats of fiberglass mold release wax. It's really slippery.
