Finished front wing on the car (endplates to be added after setting ride height)
-
- Airfoil profile laser printed on sticker paper, stuck to aluminum sheet
-
- Airfoil profiles cut from aluminum sheet
-
- Homemade hot-wire foam cutter cutting airfoil section from styrofoam block
-

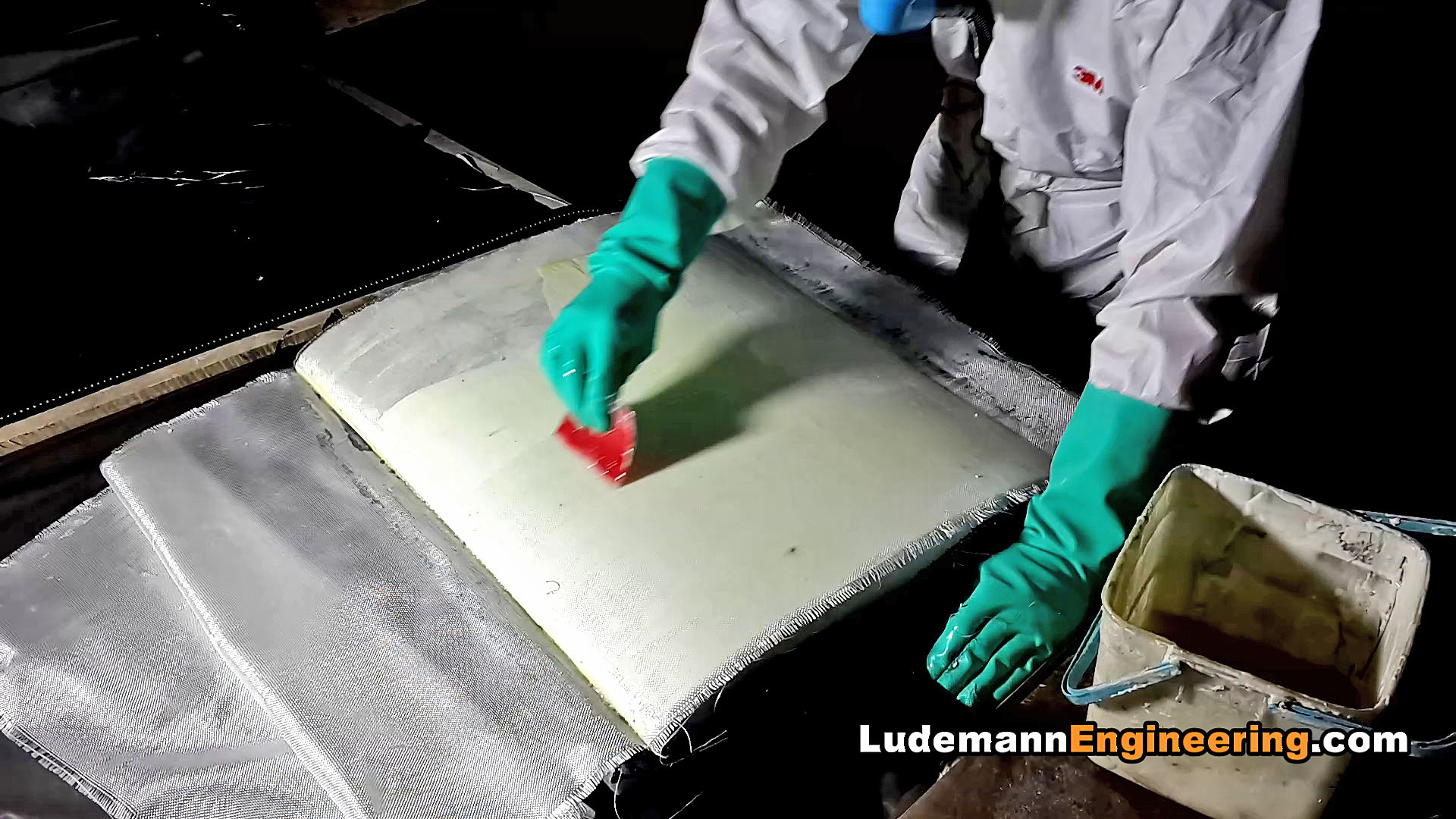

- Laminating outer skin of epoxy resin and fiberglass
-
- Cutting aluminum jacking points to be laminated into the wing
-

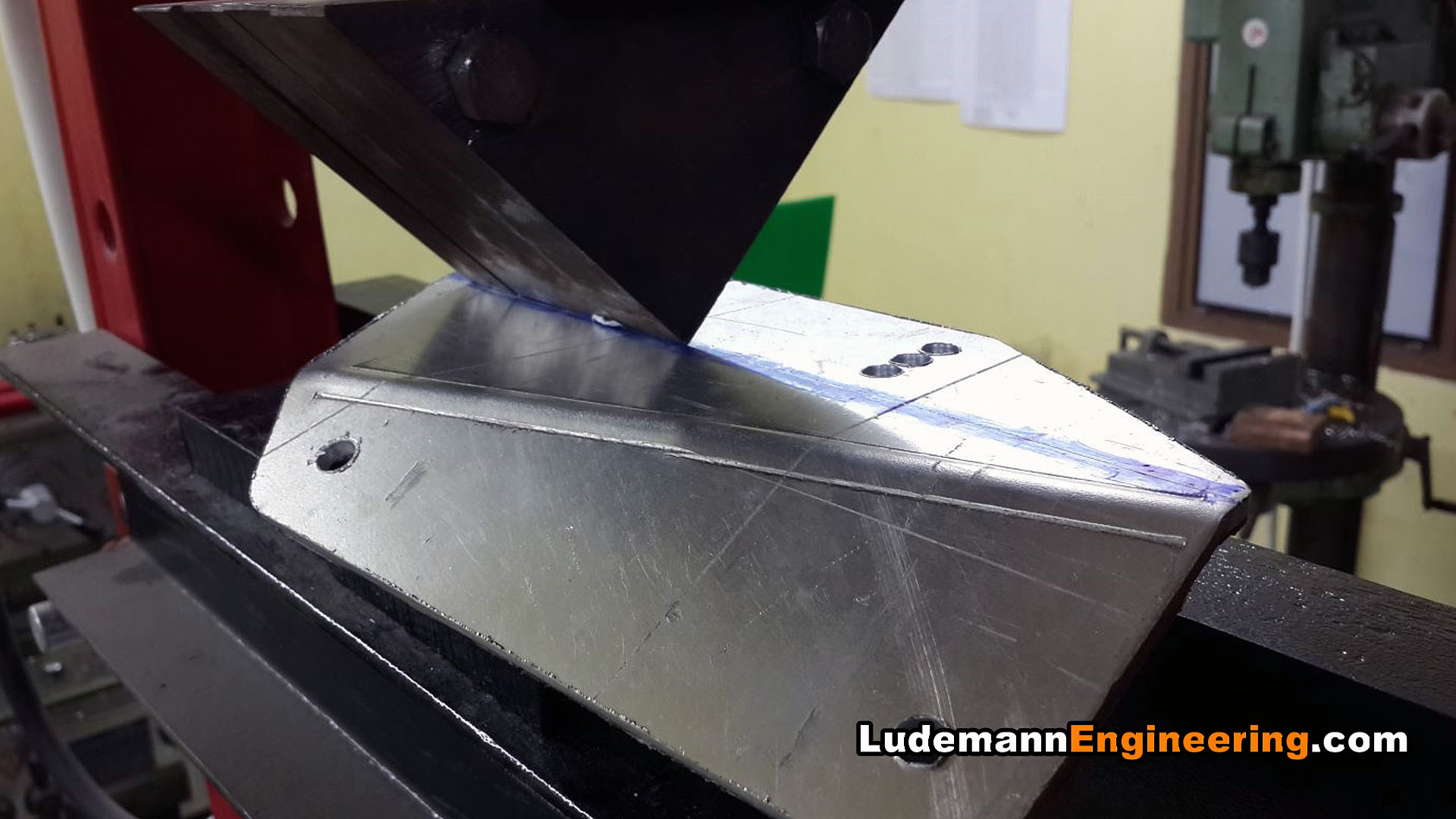

- Bending wing mounting brackets to be bolted to the nose
-
- Test fitting brackets on nose
-
- Test fitting, bottom view
-

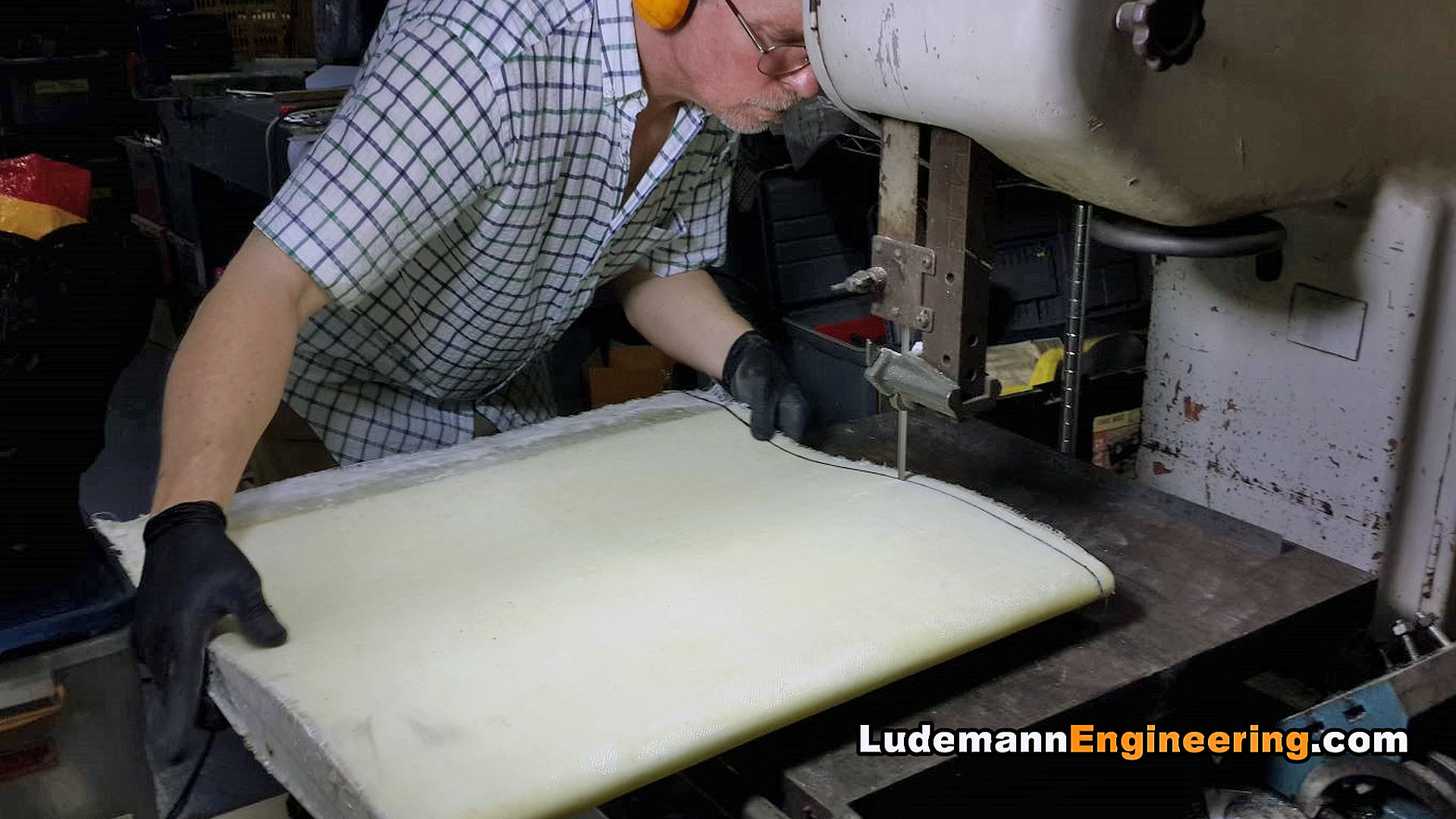

- Trimming front wing airfoil on the bandsaw
-
- Gluing 3 sections of front wing to brackets
-
- Reinforcing fiberglass skin across joints
-
- Laminating end plates with honeycomb core
-

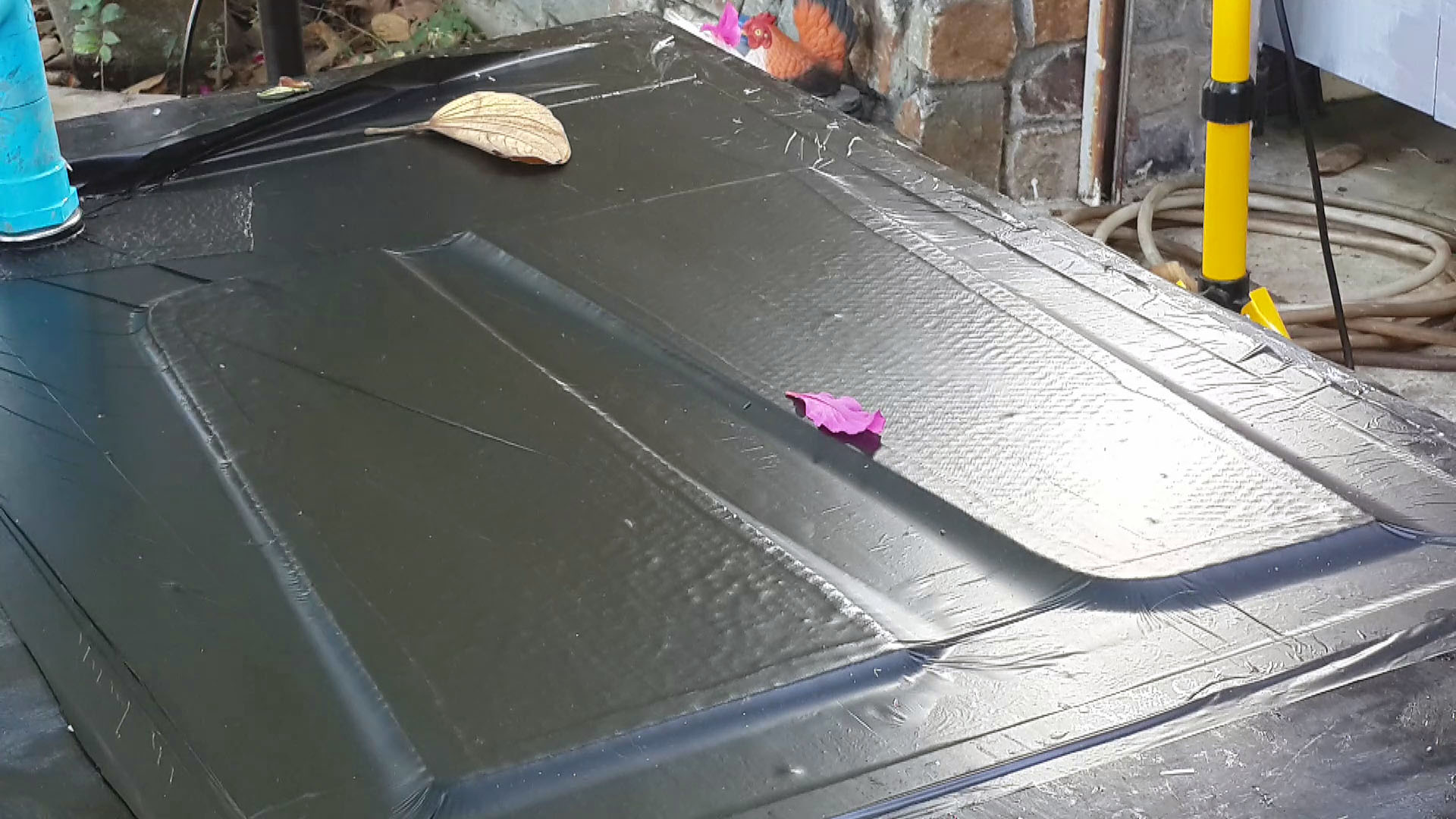

- End plates cure under vacuum
-

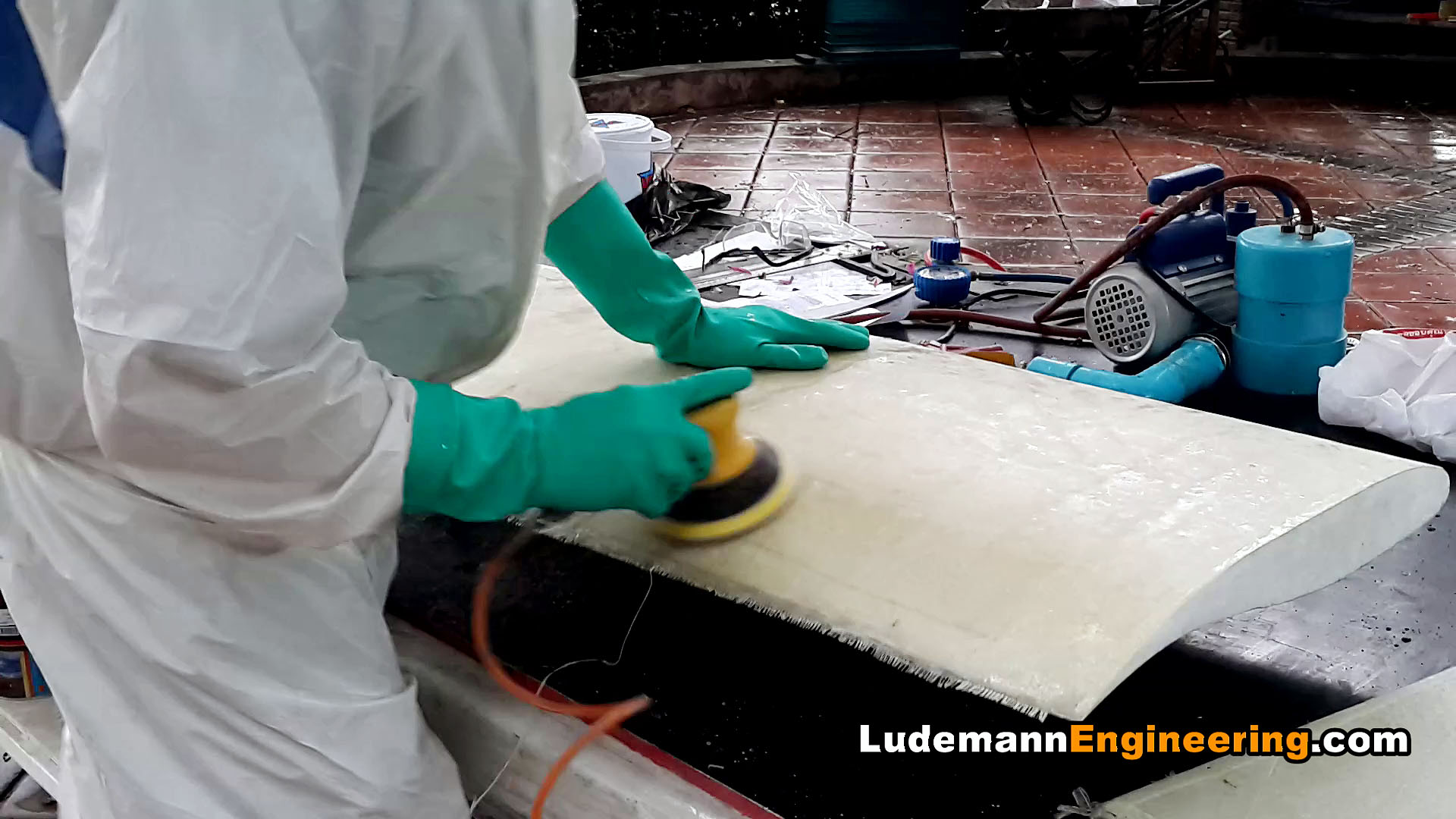

- Sanding with pneumatic double-action sander
-
- Laying up endplate mounting points
-
- Epoxy & microballoon filler to smooth out the spar
-
- Top coat of 2-part epoxy paint
-
- Car lifted by front wing
