Anyway, on to fabricating the lower A-arms, or control arms:
Repeat everything four times. Final result: four lower A-arms
-
- Starting with the spherical bearing cups, face and cut outside diameter
-
- Cutting the internal diameter on a bearing cup. This is a press fit, so it has to be cut as perfectly as the tools will allow.
-
- My boring bar won’t fit into my new quick-change tool holder, so I had to cut it down to fit.
-
- Boring bar now fits into tool block.
-
- Cutting the groove for a snap ring. I wasn’t sure I could get the press fit perfect, so I included provisions for a snap ring
-
- Snap ring in place for a trial fit.
-
- Using the cutoff tool to cut the part off the stock
-
- Bearing cup, spherical bearing, snap ring, and ID gauge for cup. I don’t have an internal micrometer, so used my external micrometer to cut a gauge to the precise length for the ID.
-
- I ground a carbide cutting tool for the boring bar to the correct width to cut the snap ring groove. It took a lot of grinding. Carbide is really hard!
-
- Starting the rod end receptacles that will be welded to the legs of the A-arms. Face and cut OD on lathe.
-
- Cut step to fit inside A-arm tube.
-
- Use center drill for accuracy.
-
- Drill hole to be tapped for rod end
-
- Using cutoff tool to part off
-
- Tap for 3/8-24 left hand threads. A later version of the A-arms may have easy rod-end adjusters, so I’m using left hand threads here, too.
-
- Cutting a chamfer on the face of the rod-end receptacle. Looks better, is lighter.
-
- Four finished rod-end receptacles
-
- Setup for tack welding rod end receptacle into A-arm tube
-
- Tack welded in place
-
- Welded all the way around. Holding the tube in a V block makes it easy to turn while welding
-
- Made 2 aluminum bushings to fit inside the bearing cup and locate it on the jig
-
- Rod ends are held in jig for welding.
-
- A-arm jig is made from printed drawing glued to plywood.
-
- Spherical bearing cup fully welded to one leg of an A-arm
-
- Both legs of an A-arm fully welded to a bearing cup
-
- A-arm bearing cup braces marked and cut
-
- Bearing cup braces in place and welded
-
- Pushrod mount in place and welded. These pieces were made with the patented (not patented!) technique of printing on sticker paper, cutting with a plasma cutter, grinding to exact shape.
-
- Spherical bearing is pressed into place on my home made hydraulic press. Custom bushings were made to only push on the correct places, like not the ball.
-
- Anti-intrusion bar test fitted
-
- Anti-intrusion bar fully welded. Weld shrinkage is a problem here.
-
- Welding distorted the bearing cap enough that I had to recut the bore. First, find the center of the hole.
-
- Next, use a boring head to cut the hole to exact dimension. Very tricky; had to use 1/2 the smallest tick mark on the boring head. Total overlap for press fit is around 0.001″
-

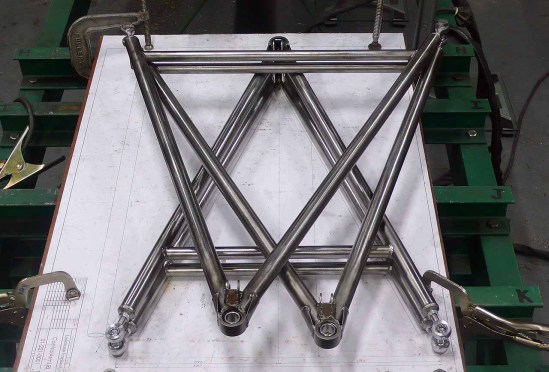

- Repeat everything four times. Final result: four lower A-arms
LudemannEngineering
you might try using brass plugs for the bearing cups to avoid distortion throughout the welding process
also the mass of your jig should greatly exceed that of the piece that is being fabricated
I used aluminum plugs in the bearing cups when I welded them, but that wasn’t enough. Maybe brass is the key.
In any case, with the upper control arms I’m not trying to cut the inner diameter of the bearing cups to exact size before I weld them. I cut them quickly and approximately to size, and save the final, exacting cut until after welding.
Hi I was going to say try brass plugs for your bearing cups but someone beat me to it. Also I wanted to mention you should check out the website dezert rangers and go in the forum then look for “fab shop” there is a lot of fabrication with custom arms I think you would enjoy seeing
adding to my last reply here are some welding / fabrication links
http://www.race-dezert.com/forum/showthread.php/59124-****Pretty-Welds-****/page141
http://honda-tech.com/showthread.php?t=2503416&page=83
http://honda-tech.com/showthread.php?t=2460376&page=9
http://www.dezertrangers.com/vb/fab-shop/13187-1015.htm
Thanks for the links. I already have a link to the god of fabrication at race-dezert.com, but I hadn’t seen those other sites.
Thanks no problem, I am reading your whole blog and love it and I love how you post lots of pics. Maybe start a topic on the honda-tech fab section and you can link back to your blog for more traffic too. They allow any fabrication topics.
Hi Jim, really enjoying the updates. Are you able to send me your contact details?
Thanks! More updates coming soon. I’ll email you…
-Jim
