Formula 1000 race car top view overall dimensions
I’ve been getting requests for the dimensions of the car from around the world. This should help. Some of the aerodynamic details have changed since this 3D model was made, so don’t take this drawing too literally. If you click on the image above you’ll get a PDF file with both top and side views dimensioned and in high resolution.
Helmet Cam image from first test at Bira Circuit, Thailand, 11 Aug. 2015 Click for video.
After five long years of work, the car finally made it to the track!
On Tuesday, August 11 we did a shared-track day at Bira International Circuit in Pattaya, Thailand. The trailer’s not finished, nor do I have a tow vehicle yet, so we had a slide truck pick the car up and deliver it to the track. Bira’s only five minutes from my house, so this was easy.
So here we are at the track with a car designed from a clean sheet of paper, a prototype that’s never turned a wheel, a driver who’s ever driven only one lap of this course in a Honda Jazz/Fit several year ago, who’s never driven a sequential transmission, hasn’t been in a race car in 14 years, never driven with race tires, and tires, in fact, that were bought used several years ago. Also, springs and shocks that turned out to be way too stiff, and no front wing, rear wing, sidepods, or diffuser. Yeah! Let’s go!
Surprisingly enough, the test went great! Through various friends I had four mechanics helping me, three of whom were experienced race car mechanics. Before going out the mechanics went over the car carefully and found a small gas leak at the fuel tank and a slight oil leak at the oil pressure sensor, but those were soon fixed. I did one slow lap, starting to bed in the brakes, then came in for a check. Then I did another 8 laps to finish bedding-in the brakes and brought the car in for a complete check. At that point we had to adjust the drive chain tension.
After I rested I went out again for several more laps trying to bring the speed up, doing a best lap around 1:28, still very slow for Bira. I brought the car in when my neck couldn’t take it anymore, after only about six laps. The issue was not so much cornering force as it was the wind pushing my helmet backwards; I just couldn’t hold my head up against it. We found a few issues like the torque spec on the left front wheel bearing was not high enough, leaving the axle free to wobble a bit in the bearing. Also, the left rear lug nut backed off, and the throttle cable came loose at the engine bracket. We increased the lug nut torque spec and reversed all the nuts so the flat side contacted the wheel as we decided the radius on the wheel was too small to properly contact the conical face of the nuts.
For the third run I brought the speed up more, with a best lap of about 1:21, but the car was undrivable at high speed. I believe it was actually bouncing in the air on the straight, as I could hear engine speed variations even when I wasn’t touching the clutch or gear lever. I kind of expected something like this as the springs are way too stiff. Anyway, the stiff springs bent the right rear suspension pushrod adjuster, and we were done for the day.
So overall, the suspension geometry feels perfect. The engine, transmission, electrical system, frame, steering, cooling and almost everything else worked flawlessly.
Wow, it fast! It’s the most amazing thing I’ve ever driven. It makes my old twin-plug 3.5 liter Porsche 930 feel like a tractor. But it demands precision and skill– I felt like an elephant learning to tap dance. As I’m sure you will see from the video, my shifting was all wrong. All the action in the clutch is in the first half inch, whereas the throttle pedal moves like four inches so coordinating the two was difficult. In addition, I was still driving it like a normal transmission, using the clutch on upshifts, as we decided to learn proper sequential shifting in a later test. I can see that with some suspension tuning, aerodynamics, tires, and a software upgrade for the nut that holds the steering wheel, the car will be seriously fast.
Thanks to everyone on Apexspeed who has provided advice, technical knowledge, and emotional support over the years. I couldn’t have done it without you!
After much debugging of the electrical and fuel injection systems, we have ignition!
Click to watch the video on Youtube
Finished Seat
For the intermediate term I’ll be using a custom-molded seat insert made with readily available (and cheap) two-part urethane foam. I have a kit of the Indy/F1 style foam, but it’s so expensive I’m going to learn what I can from the cheaper seat first. I’ve learned useful things already: on the first pour the bag doubled over or stuck to itself and the foam didn’t make its way to the thigh area, so the first attempt was scrapped. It was also useful, however, in finding out where to slice the foam to get it out of the car easily, and learning how thin the foam will make itself under high pressure areas (zero thickness). So for the second attempt I first lined the entire cockpit with two layers of 10mm energy-absorbing foam before pouring the 2-part foam.
As it expands the foam pushes hard against any constriction, like your body. When it hardens it’s almost too tight to fit back into. Many hours of sanding and cutting are needed to make the fit reasonable and comfortable. As it is, I can’t even get into the seat with my wallet in my pants pocket. At first I couldn’t even breathe in fully with the shoulder harness straps moderately tight.
Nose in place while epoxying aluminum hard points into correct positions
SCCA FB rules require a metallic or composite front impact attenuator. Can’t have cars running around on the track with a battering ram on the front… My impact attenuation structure, or crash box, consists of a carbon-fiber and honeycomb sandwich laid up directly on the inside of the fiberglass nose. The carbon fiber varies from four layers at the front to eight layers around the rear attachment points so that it will crush progressively from the front to the back. Cylindrical aluminum inserts are used in the honeycomb as hard mounting points for the wing to the nose and for the nose to the chassis. This area is designed to be strong enough not just to absorb impacts but to allow lifting the front of the car by the front wing.
Finished chain guard in place
Formula 1000 rules require a chain guard equivalent to 1/4″ aluminum to contain the chain in case of a break. I had the blank laser cut, then bent it on my tubing bender. After bending, it was sliced in two parts for easier access to the chain and rear sprocket, drilled and tapped for an overlapping tab, cross-drilled for mounting holes, and installed.
Two-part polyurethane foam expanding to fill the driver’s head surround.
For proper protection in a crash, the driver’s head surround needs to be filled with foam. I placed an aluminum panel where I wanted the bottom of the foam to be, covered everything with plastic sheeting and poured two-part urethane foam into the cavity. The foam generates considerable pressure as it expands and cures, necessitating many iterations of trimming and fitting. I then sat in the car with the HANS device on, followed by many more iterations of trimming and fitting. Once the foam was cut to shape, I covered it in a single layer of fiberglass and epoxy, then painted it.

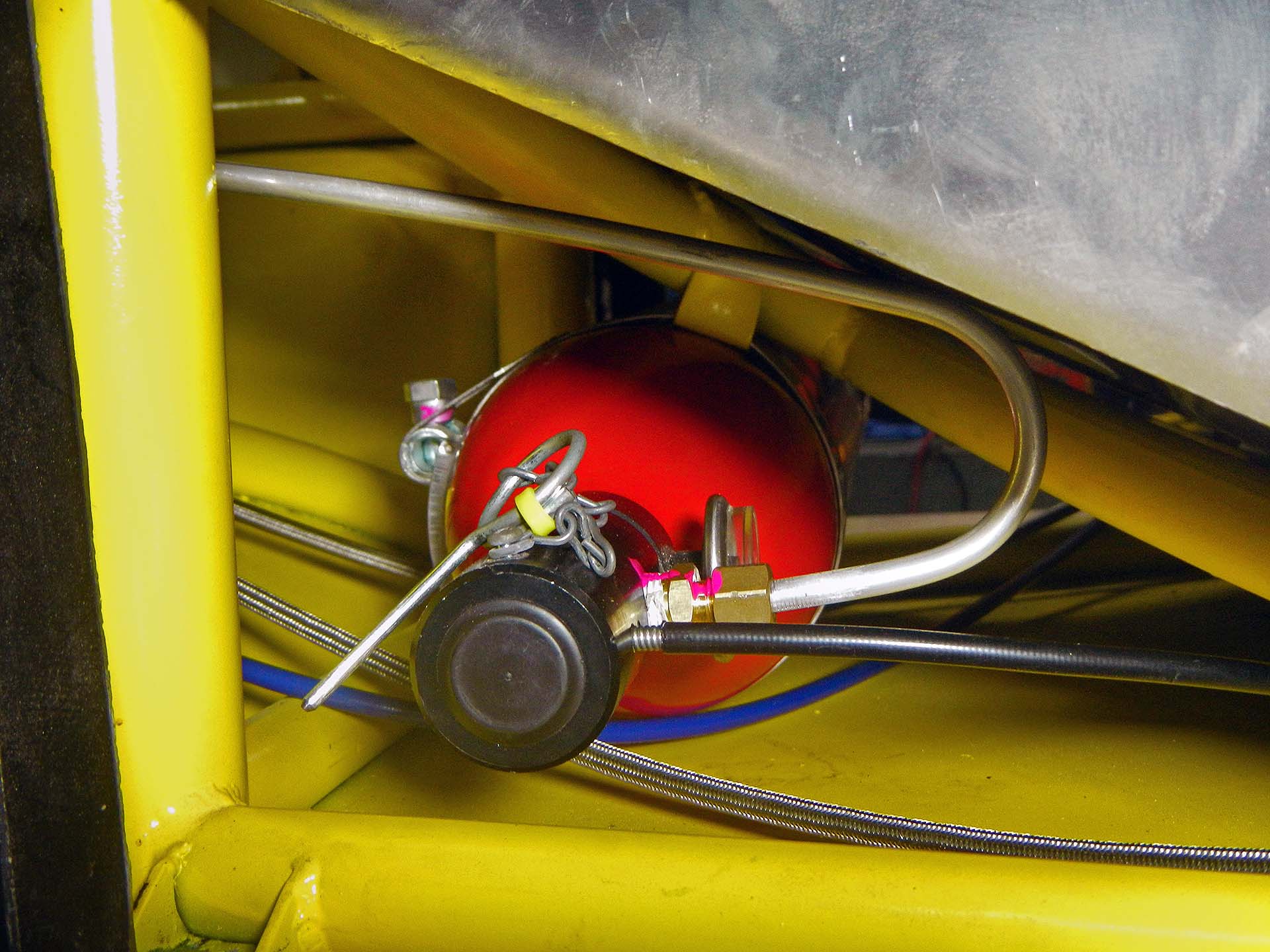

Fire extinguisher with trigger cable and plumbing
The fire extinguisher sits under the driver’s knees with a single outlet tube that goes up to the left side of the driver’s left knee, where it splits at a T intersection. One tube goes up to the dashboard and crosses over to the right side where it ends in a nozzle to the right of the driver’s right hand. The other tube is routed inside the left of the driver’s compartment, through the firewalls, and ends in a nozzle pointed at the headers. The cable-operated trigger is mounted just to the right of the driver’s right hand. These locations guarantee that when the driver pulls the trigger his hand will not be blocking the driver’s-compartment nozzle.
Finished halfshaft collar in place.
I decided there was too much play between the axle halfshafts and the differential extensions, so I made collars with the precise inner diameter and length necessary to remove all play. I was pleased that I could make them so precisely, even on my old beat-up lathe, that they made an almost airtight seal. I’m showing many of the steps below as a reminder of just how many operations go into making even the simplest-looking parts.
Fuel swirl pot view from right rear
The car uses an OEM Suzuki GSX-R1000 fuel pump mounted in an external swirl pot. The swirl pot is fed by another electric fuel pump that draws from the fuel cell, with excess fuel returned to the fuel cell. The swirl pot will generally be full, providing a buffer in case the pickup in the fuel cell temporarily sucks air during hard cornering or braking. The shape of the swirl pot is tall and narrow, with the fuel drawn from the bottom so that the engine should never experience fuel starvation.
The swirl pot was fabricated from 1/4″ thick aluminum plate and tube stock just big enough to fit the OEM fuel pump inside. Welding was done by an outside professional welder. An interesting fact about the Suzuki fuel pump, discovered a bit late, is that the five bolts appear to be evenly spaced but aren’t. One of them is off by a bit, probably so the pump can only be installed in a single orientation. This necessitated welding one of the holes closed and re-drilling it.
The OEM fuel pump has a large appendage for fuel level sensing which clearly won’t fit into a small swirl pot, so I cut it off. it would be nice to have a level sensor in the swirl pot so I can watch fuel starvation and get enough warning to get back to the pits before I run out of fuel, but I haven’t figured a way to do this yet.
