Building the Chassis Nose

Starting Nose

Starting the nose tubes.

More Tubes

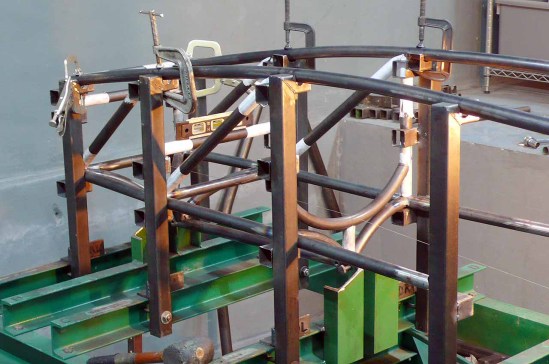

Test fitting the A, C, & D bulkhead side and bottom tubes.

Adjusting Jigs

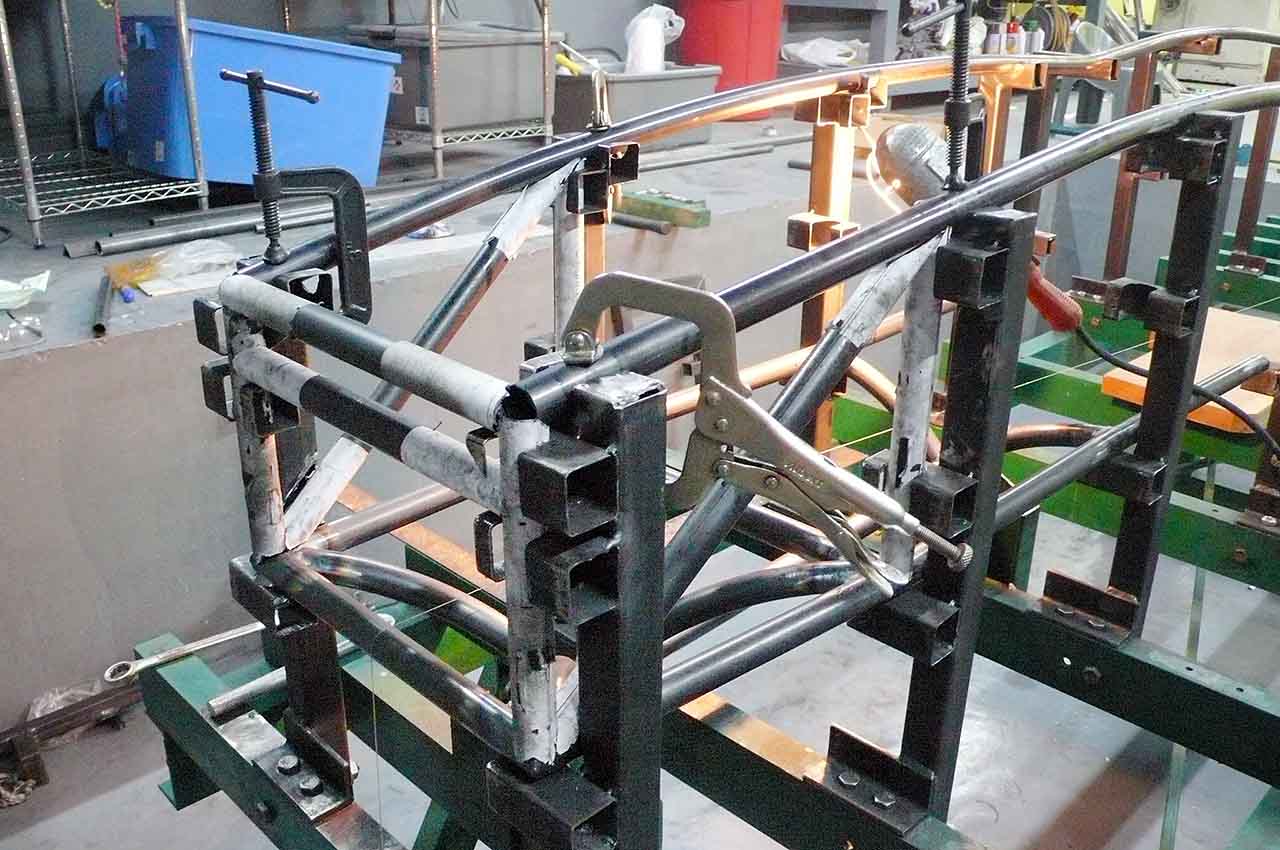

Adjusting the jigs to fit as I go. Have to make sure they can be removed after welding.

Top Tubes

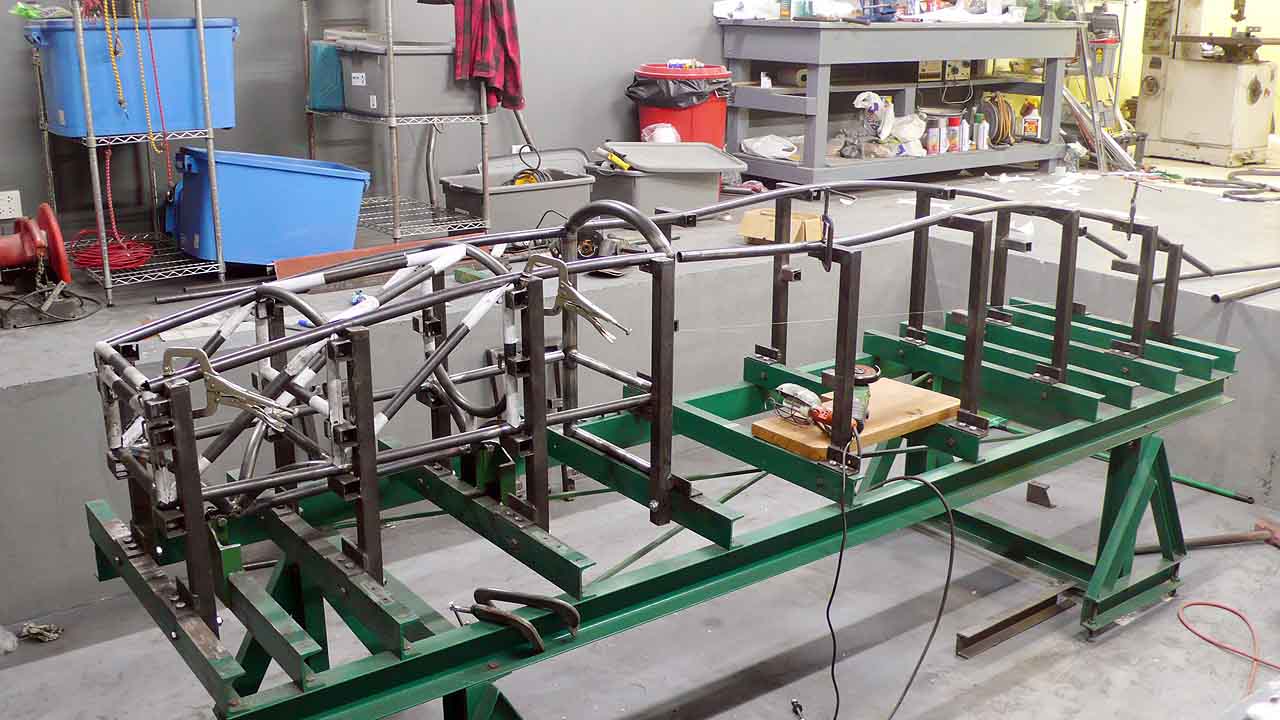

Test fitting the C to D bulkhead top tubes

Tube Rippling

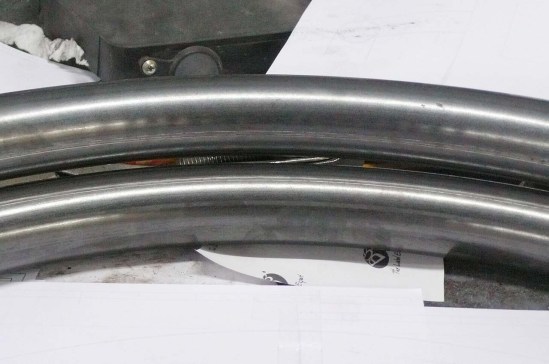

Top tube: seam on inside of bend. Bottom tube: seam 45 degrees from inside of bend. Note slight rippling on upper tube. This is why seams must not be located on a major axis of bends.

Front Roll Hoop

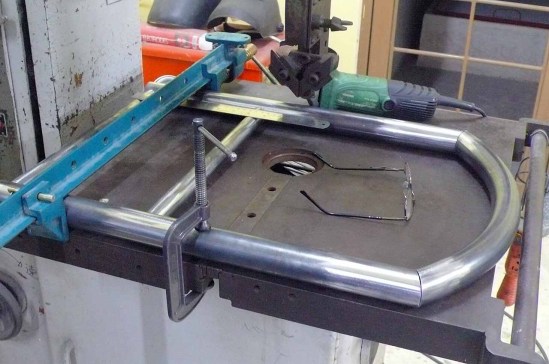

Front roll hoop ready for welding.

Front Roll Hoop Done

Front roll hoop fully welded.

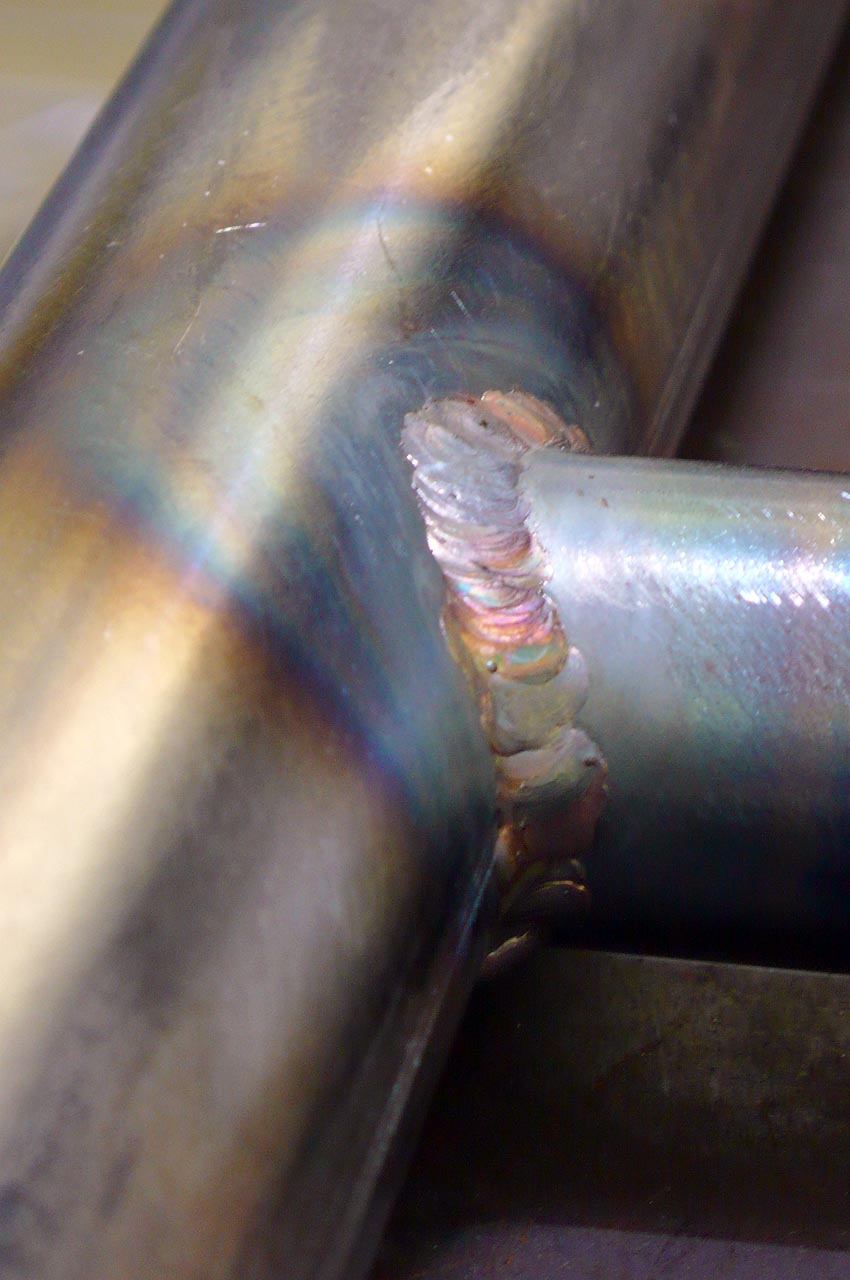

Better Weld

Welds are getting better. Now as long as I don't have to stand on my head I can make a pretty good weld.

Front Roll Hoop in Place

Front roll hoop in place. This required cutting the top tube frames. Not a problem as each piece will retain the correct shape.

Starting to Weld

A to C bulkheads welded. There is no B bulkhead (:-).

A, C, & D Bulkheads Welded

A to C to D bulkheads welded

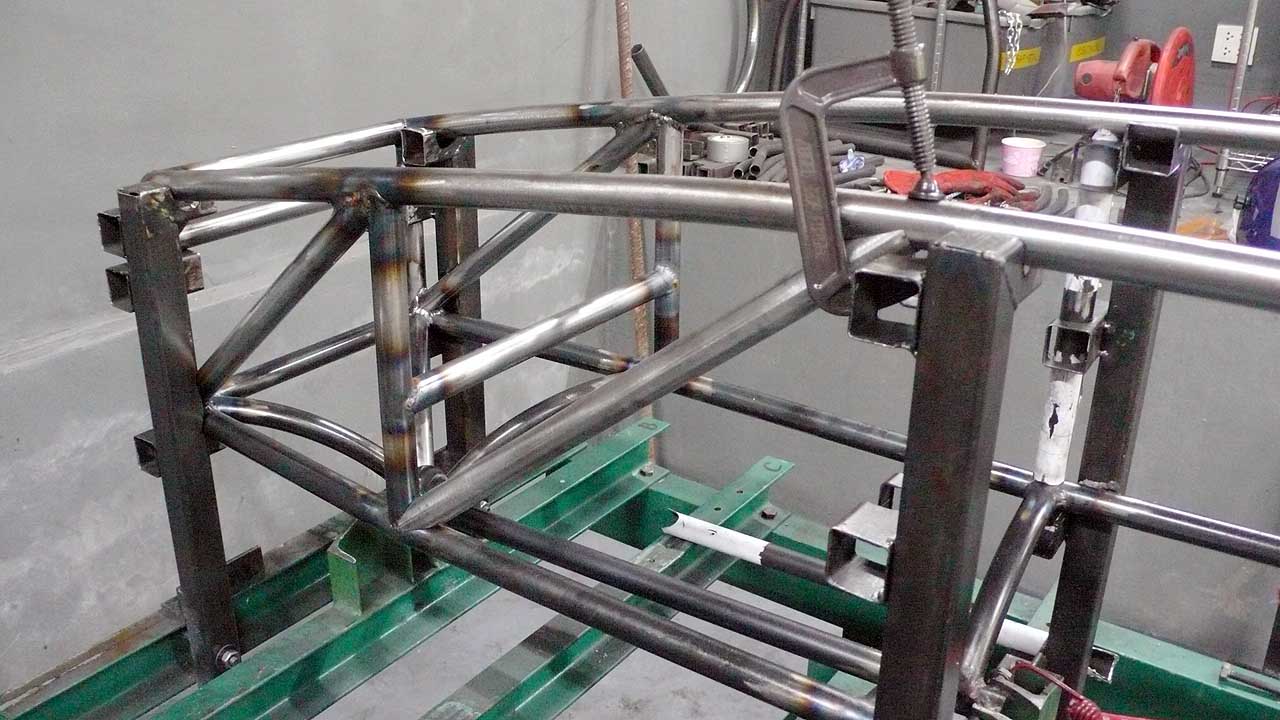

Front Roll Hoop Welded

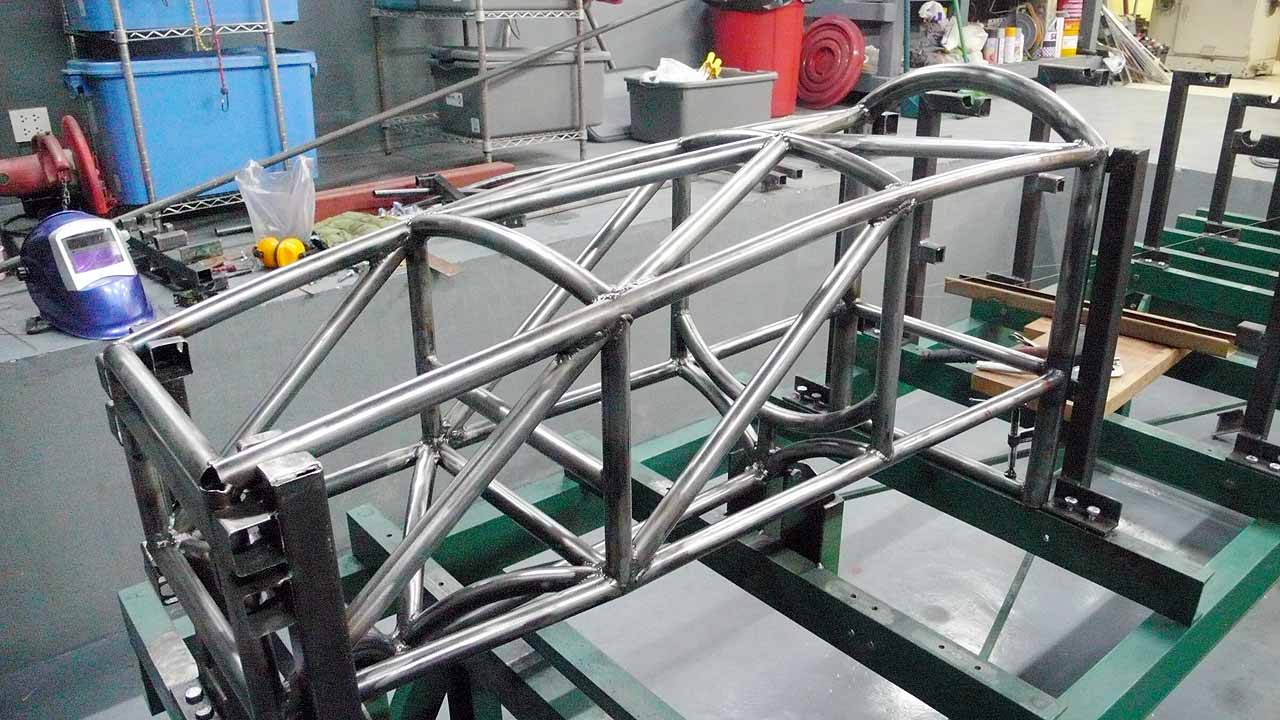

Front roll hoop welded, top diagonals added.

D-E Sides

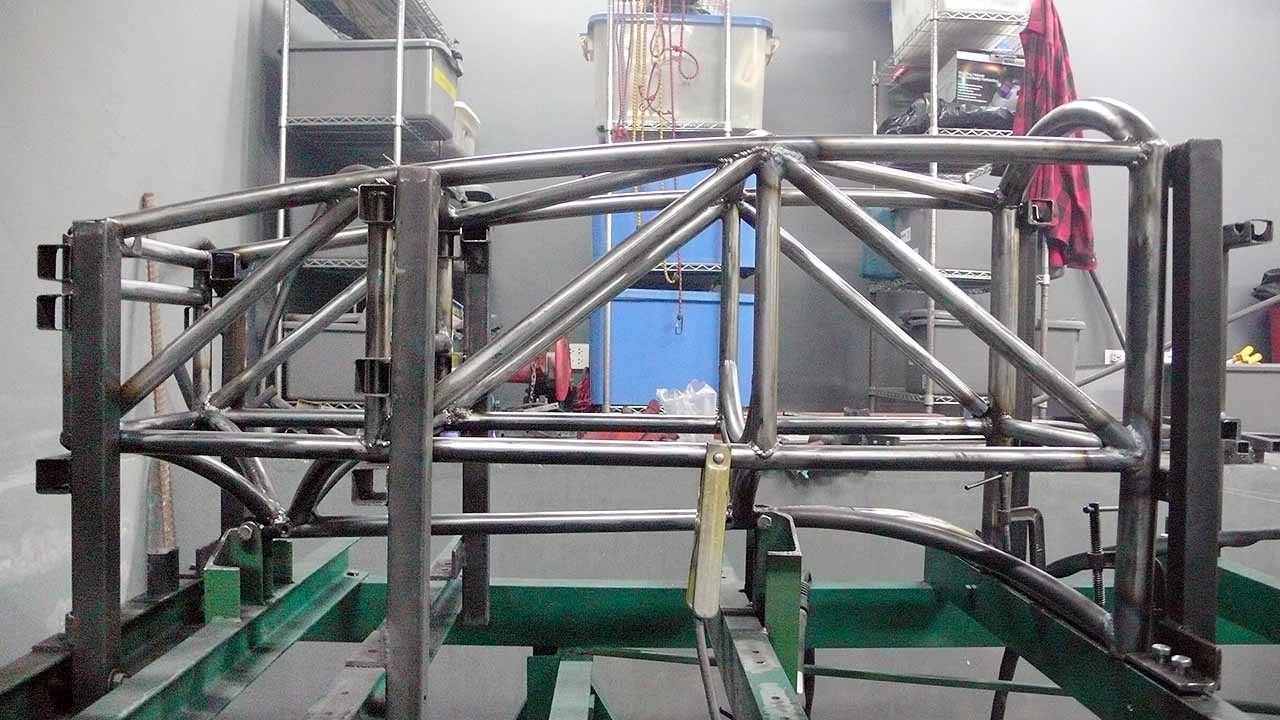

D to E side diagonals added.

Nose Finished

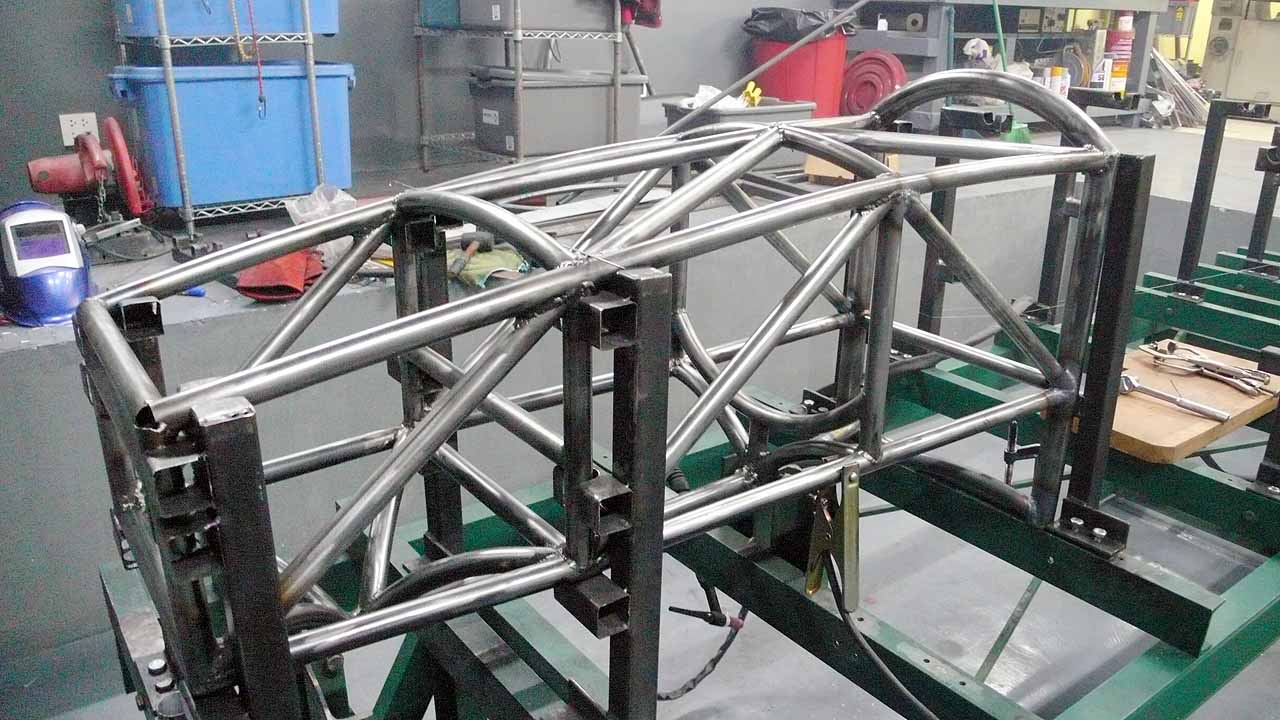

The basic frame of the nose from the tip to the front roll hoop, finished.
